The Radial
Nine cylinders · air-cooled
Pull it through

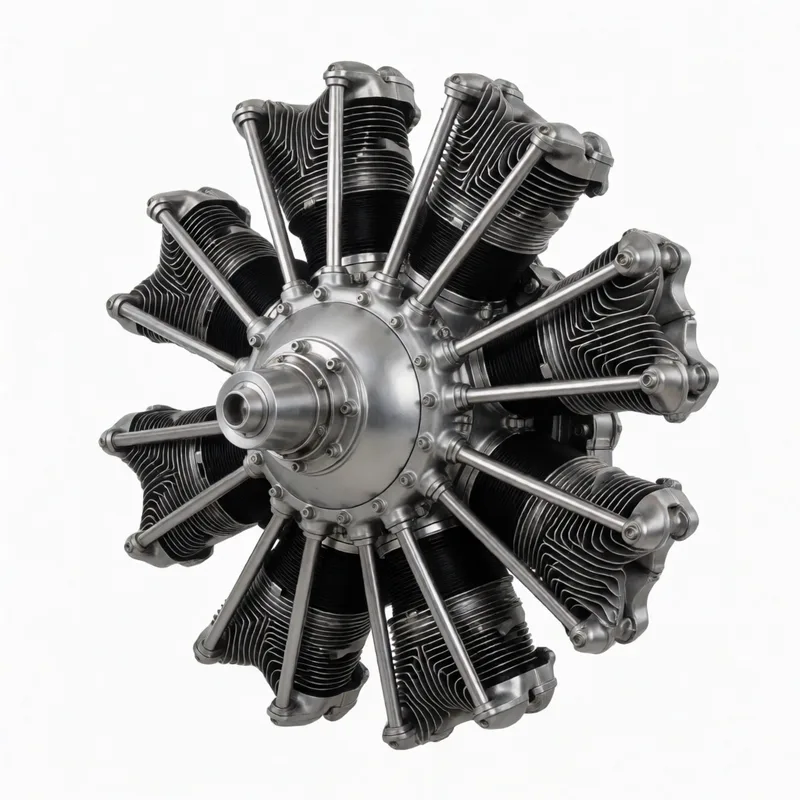

Cylinders arranged like spokes around a single throw of the crank — so every one meets clean air.
Spooling up…
- 1Cooling fins, each jug
- 2Single crank throw (hub)
Data plate
- Cylinders
- Nine, single row
- Cooling
- Air, over barrel fins
- Firing order
- Every other cylinder
- Before start
- Pull through for lock
Pilot’s notes
With the jugs splayed out radially, each finned barrel sits directly in the slipstream, which is how a radial sheds its heat without a drop of coolant. Oil drains into the bottom cylinders when it sits, so you pull the prop through by hand before a start to clear any hydraulic lock before it bends a connecting rod.
Airmanship · watch for
Hydraulic lock
Oil pooled in a lower cylinder will not compress — turn the prop by hand first, and if a blade stops solid, stop and drain it rather than force it.
